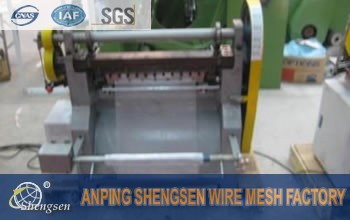

The machine is used for making of expanded metal mesh with sheet thickness of 1.2- 2.5mm and the sheet width of 2000mm. Expanded metal mesh can be used in construction, common hardware, window and door safety, machine protecting, etc.
| Main Parameter | |||||||
| TYPE | SS25-6.3 | SS25-16 | SS25-25 | SS25-63A | SS25-63B | SS25-160A | SS25-160B |
| DEPTH | =1.0mm | =1.0mm | =1.5mm | =2.5mm | =3mm | =6mm | =6mm |
| WIDTH | 500mm | 1000mm | 1250mm | 2000mm | 2000mm | 2500mm | 2500mm |
| TIMES | 180/min | 150/min | 150/min | 70/min | 45/min | 70/min | 20/min |
| DISTANCE | 0-1.15mm | 0-1.2mm | 0-1.2mm | 0-4mm | 0-4mm | 0-7mm | 0-7mm |
| LENGTH OF MESH | =20mm | =25mm | =30mm | =100mm | =200mm | =250mm | =250mm |
| MOTOR | 2.2KW | 3KW | 4KW | 11KW | 11KW | 22KW | 22KW |
| WEIGHT | 0.95T | 2T | 3T | 10T | 10T | 18T | 20T |
| MEASUREMEENT | 950 *570 *1780 | 1800 *1320 *1550 | 1940 *1600 *2010 | 2400 *3500 *2300 | 2400 *3500 *2300 | 5500 *1750 *3300 | 5500 *1750 *3300 |
